• Wide Dimmer compatibility- supports most phase type
dimmers in the market, including leading edge and trailing
edge, electronic low voltage (ELV), TRIAC, and SCR dimmers.
• Dimming Range: 0 -100%
• Integral 1-10V Dimming options available
• Wiring compartments for reduced installation costs
• Active Power Factor Correction, PF>0.9
• Energy Star Compliant
• Built-in protection: SCP, OTP, OVP, OCP
• UL/cUL Listed* Class 2, CE, FCC Title 47 CFR 15 Class B
• IP 65
Constant Voltage AC Phase Dimmable Drivers

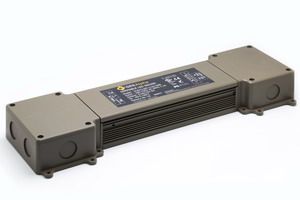

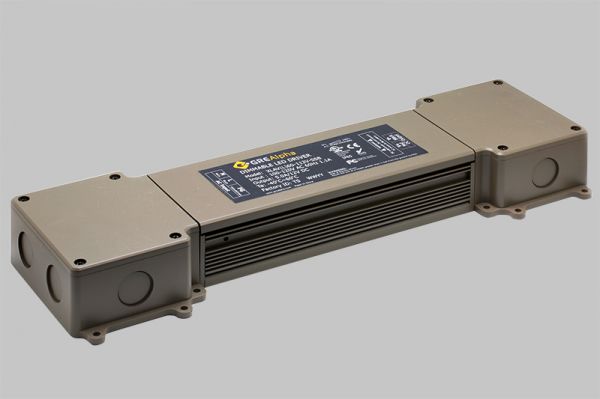

The Linear Lighting Pro Series is the ideal, dimmable powering solution for linear lighting applications. The XLAV is a UL Class II, constant voltage, phase dimmable, LED driver, capable of providing full range, 0-100% smooth, flicker-free dimming. Tested with over 70 dimmer brands on the market, this unit works with both forward/reverse phase (TRIAC/ELV) type dimmers, and is unsurpassed in dimmer compatibility and performance. This unit comes in two versions - A compact version (SI) for space constrained applications, and a UL listed version (SSB), with patent pending integral wiring compartments for easy installation.
| Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
|---|---|---|---|---|---|---|---|
| IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
| 100-120 | 1 | 12 | 0.25-5.00 | 60 | 60 | ||
| 100-120 | 1 | 24 | 0.13-2.50 | 60 | 60 | ||
| 200-240 | 1 | 12 | 0.25-5.00 | 60 | 60 | ||
| 200-240 | 1 | 24 | 0.13-2.50 | 60 | 60 | ||
| Part Number |
|---|
| XLAV(L)60-112V- |
| XLAV(L)60-124V- |
| XLAV(H)60-112V- |
| XLAV(H)60-124V- |
Constant Voltage AC Phase Dimmable Drivers
The Linear Lighting Pro Series is the ideal, dimmable powering solution for linear lighting applications. The XLAV is a UL Class II, constant voltage, phase dimmable, LED driver, capable of providing full range, 0-100% smooth, flicker-free dimming. Tested with over 70 dimmer brands on the market, this unit works with both forward/reverse phase (TRIAC/ELV) type dimmers, and is unsurpassed in dimmer compatibility and performance. This unit comes in two versions - A compact version (SI) for space constrained applications, and a UL listed version (SSB), with patent pending integral wiring compartments for easy installation.
| Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
|---|---|---|---|---|---|---|---|
| IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
| 100-120 | 1 | 12 | 0.33-6.50 | 78 | 80 | ||
| 100-120 | 1 | 24 | 0.17-3.30 | 79 | 80 | ||
| 200-240 | 1 | 12 | 0.33-6.50 | 78 | 80 | ||
| 200-240 | 1 | 24 | 0.17-3.30 | 79 | 80 | ||
| Part Number |
|---|
| XLAV(L)80-112V- |
| XLAV(L)80-124V- |
| XLAV(H)80-112V- |
| XLAV(H)80-124V- |
XLAVP100 is a 60 and 100Watt phase dimmabele LED driver with constant voltage output. Developed for linear lighting applications, this LED driver series comes in UL Listed Class 2 type and features patent pending, deep dimming technologe with 0-100%, flicker free dimming and wide compatibility with phase-cut LED dimmer switches such as TRIAC/ELV and SCR type dimmers. Dimming is synchronized and load independent allowing for unifrom light output for small and large installations. This unit is IP65 rated and suitable for both indoor and outdoor installations. Options for additional wiring compartments and digital dimming are available.
| Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
|---|---|---|---|---|---|---|---|
| IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
| 100-120 | 1 | 12 | 0-5.00 | 60 | 60 | ||
| 100-120 | 1 | 24 | 0-4.00 | 96 | 96 | ||
| Part Number |
|---|
| XLAVP(L)100-112V- |
| XLAVP(L)100-124V- |
XLAVP100 is a 60 and 100Watt phase dimmabele LED driver with constant voltage output. Developed for linear lighting applications, this LED driver series comes in UL Listed Class 2 type and features patent pending, deep dimming technologe with 0-100%, flicker free dimming and wide compatibility with phase-cut LED dimmer switches such as TRIAC/ELV and SCR type dimmers. Dimming is synchronized and load independent allowing for unifrom light output for small and large installations. This unit is IP65 rated and suitable for both indoor and outdoor installations. Options for additional wiring compartments and digital dimming are available.
| Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
|---|---|---|---|---|---|---|---|
| IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
| 100-120 | 1 | 0-5.00 | 60 | 60 | |||
| 100-120 | 1 | 0-4.00 | 96 | 96 | |||
| Part Number |
|---|
| XLAVP(L)100-112V-FC |
| XLAVP(L)100-124V-FC |
