Boasting universal AC input, integral wiring compartments for reduced installation costs, smart dimming options, 92% efficiency and much more, the constant current LED driver is a must-see in LED lighting component solutions.
Universal AC input
Integral wiring compartments for reduced installation costs
Constant Current and Constant Voltage dual mode operation for flexibility and optimal performance
User-adjustable Output Voltage and Current
1-10V dimming options with SLD Smart series dimming module
Up to 92% Efficiency
Active Power Factor Correction, PF>0.9
Heavy duty design for harsh enviornments
Up to 4 output channels (can be combined)
Built-in protection: SCP, OTP. OVP. OCP
IP65 standalone enclosure
UL/cUL Listed Class and 2, CE, FCC Title 47 CFR 15 Class B,
Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
---|---|---|---|---|---|---|---|
IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
100-277 | 1 | 1.12-2.94 | 9-18 | 50 | 55 | ||
100-277 | 1 | 0.84-2.21 | 12-24 | 50 | 55 | ||
100-277 | 1 | 0.56-1.50 | 18-36 | 50 | 55 | ||
100-277 | 1 | 0.48-1.26 | 21-42 | 50 | 55 | ||
100-277 | 1 | 0.42-1.10 | 24-48 | 50 | 55 | ||
100-277 | 1 | 0.28-0.74 | 35-70 | 49 | 50 | ||
100-277 | 1 | 0.16-0.42 | 62.5-125 | 50 | 50 | ||
100-277 | 1 | 0.14-0.37 | 70-140 | 49 | 50 |
Part Number |
---|
GLC50-118V- |
GLC50-124V- |
GLC50-136V- |
GLC50-142V- |
GLC50-148V- |
GLC50-170V- |
GLC50-1125V- |
GLC50-1140V- |

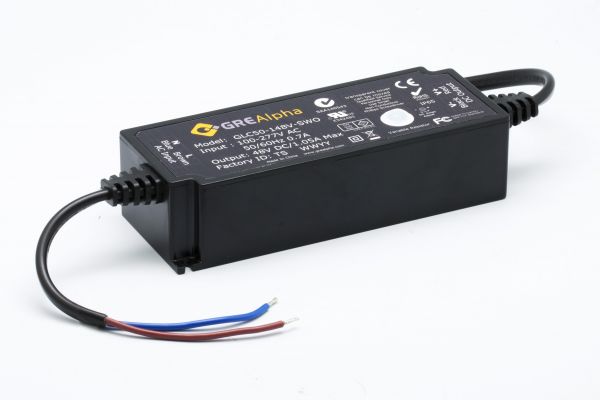

The GLC 50 constant current 50 W driver comes in a smart and compact form factor making it an ideal power supply for a wide range of LED lighting application.
With universal 90-305VAC input and user-adjustable output current setting, this power supply provides the widest flexibilty available on the market. This series is CB and UL/cULcertificated and comes with a three years warranty
Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
---|---|---|---|---|---|---|---|
IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
100-277 | 2 | 1.12-2.94 | 9-18 | 50 | 55 | ||
100-277 | 1 | 0.84-2.21 | 12-24 | 50 | 55 | ||
100-277 | 1 | 0.56-1.50 | 18-36 | 50 | 55 | ||
100-277 | 1 | 0.48-1.26 | 21-42 | 50 | 55 | ||
100-277 | 1 | 0.42-1.10 | 24-48 | 50 | 55 | ||
100-277 | 1 | 0.28-0.74 | 35-70 | 49 | 50 | ||
100-277 | 1 | 0.16-0.42 | 62.5-125 | 50 | 50 | ||
100-277 | 1 | 0.14-0.37 | 70-140 | 49 | 50 |
Part Number |
---|
GLC50-118V- |
GLC50-124V- |
GLC50-136V- |
GLC50-142V- |
GLC50-148V- |
GLC50-170V- |
GLC50-1125V- |
GLC50-1140V- |
Constant Current LED Driver with selectable output current.
GRE Alpha's ELC 15 is a 15W Constant Current LED Driver. This compact and efficient LED driver features dip-switch selectable output currents making it the most versatile and flexible LED driver suitable for a wide variety applications, whilst ensuring, consistent, high quality performance of your luminaire at all times.
Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
---|---|---|---|---|---|---|---|
IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
220-240 | 1 | 0.7/0.5/0.4/0.35 | 12-24 | 17 | 17 | ||
220-240 | 1 | 0.4/0.35/0.3/0.2 | 18-36 | 14 | 14 |
Part Number |
---|
ELC15-124V-SWC |
ELC15-136V-SWC |
Constant Current LED Driver with selectable output current.
GRE Alpha's ELC 25 is a 25W Constant Current LED Driver. This compact and efficient LED driver features dip-switch selectable output currents making it the most versatile and flexible LED driver suitable for a wide variety applications, whilst ensuring, consistent, high quality performance of your luminaire at all times.
Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
---|---|---|---|---|---|---|---|
IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
220-240 | 1 | 1.05/0.7/0.5/0.35 | 12.5-25 | 26 | 26 | ||
220-240 | 1 | 0.7/0.5/0.4/0.35 | 18-36 | 25 | 25 |
Part Number |
---|
ELC25-125V-SWC |
ELC25-136V-SWC |
Constant Current LED Driver with selectable output current.
GRE Alpha's ELC 35 is a 35W Constant Current LED Driver. This compact and efficient LED driver features dip-switch selectable output currents making it the most versatile and flexible LED driver suitable for a wide variety applications, whilst ensuring, consistent, high quality performance of your luminaire at all times.
Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
---|---|---|---|---|---|---|---|
IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
220-240 | 1 | 1.05/0.7/0.5/0.35 | 18-36 | 38 | 38 |
Part Number |
---|
ELC35-136V-SWC |
Constant Current LED Driver with selectable output current.
GRE Alpha's ELC 50 is a 50W Constant Current LED Driver. This compact and efficient LED driver features dip-switch selectable output currents making it the most versatile and flexible LED driver suitable for a wide variety applications, whilst ensuring, consistent, high quality performance of your luminaire at all times.
Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
---|---|---|---|---|---|---|---|
IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
220-240 | 1 | 1.05/0.7/0.5/0.35 | 24-48 | 50 | 50 | ||
220-240 | 1 | 1.4/1.05/0.7/0.5 | 18-36 | 50 | 50 |
Part Number |
---|
ELC50-148V-SWC |
ELC50-136V-SWC |
