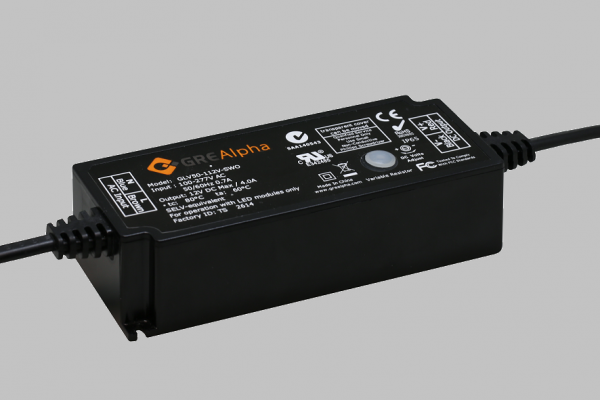

50W Constant Voltage LED Driver
The GLV50 constant voltage 50 W driver comes in a smart and compact form factor making it an ideal power supply for a wide range of LED lighting application. With universal 90-305 VAC input and user-adjustable output voltage setting, this power supply provides the widest flexibility available on market. This Series is CB, UL/cUL certified and comes with a three years warranty.
| Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
|---|---|---|---|---|---|---|---|
| IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
| 100-277 | 1 | 6-12.6 | 0-4.00 | 48 | 50 | ||
| 100-277 | 1 | 7.5-15.8 | 0-3.50 | 53 | 55 | ||
| 100-277 | 1 | 12.0-25.2 | 0-2.00 | 48 | 50 | ||
| 100-277 | 1 | 18-37.8 | 0-1.40 | 50 | 50 | ||
| 100-277 | 1 | 24-50.4 | 0-1.00 | 48 | 50 | ||
| Part Number |
|---|
| GLV50-112V- |
| GLV50-115V- |
| GLV50-124V- |
| GLV50-136V- |
| GLV50-148V- |
Constant Voltage LED Drivers
The GLV50 constant voltage 50 W driver comes in a smart and compact form factor making it an ideal power supply for a wide range of LED lighting application. With universal 90-305 VAC input and user-adjustable output voltage setting, this power supply provides the widest flexibility available on market. This Series is CB, UL/cUL certified and comes with a three years warranty.
| Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
|---|---|---|---|---|---|---|---|
| IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
| 100-277 | 1 | 6-12.6 | 0-4.00 | 48 | 50 | ||
| 100-277 | 1 | 7.5-15.8 | 0-3.50 | 53 | 55 | ||
| 100-277 | 1 | 12.0-25.2 | 0-2.00 | 48 | 50 | ||
| 100-277 | 1 | 18-37.8 | 0-1.40 | 50 | 50 | ||
| 100-277 | 1 | 24-50.4 | 0-1.00 | 48 | 50 | ||
| Part Number |
|---|
| GLV50-112V- |
| GLV50-115V- |
| GLV50-124V- |
| GLV50-136V- |
| GLV50-148V- |

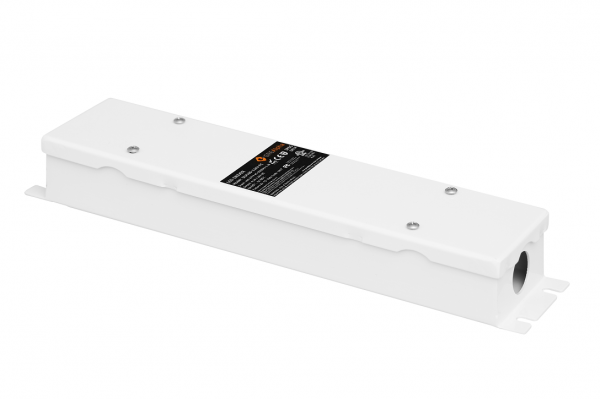

The SLV 100 -FC series is a UL Listed Class 2 100 Watt LED driver series with constant voltage output. Coming in a patented enclosure with easy-install integral wiring compartments, the
SLV100-FC is class 2 UL listed eliminating needs of external junction boxes saving installation time and costs by half. 12 V auxillary cable output options are available for connection with IoT sensors or active cooling devices. This series can be easily upgraded with dimming options by combining with any of GRE Alpha's dimming module accessories.
| Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
|---|---|---|---|---|---|---|---|
| IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
| 100-277 | 1 | 0-8.33 | 100 | 100 | |||
| 100-277 | 1 | 0-4.20 | 100 | 100 | |||
| 100-277 | 1 | 0-2.10 | 100 | 100 | |||
| Part Number |
|---|
| SLV100-112V-FC |
| SLV100-124V-FC |
| SLV100-148V-FC |

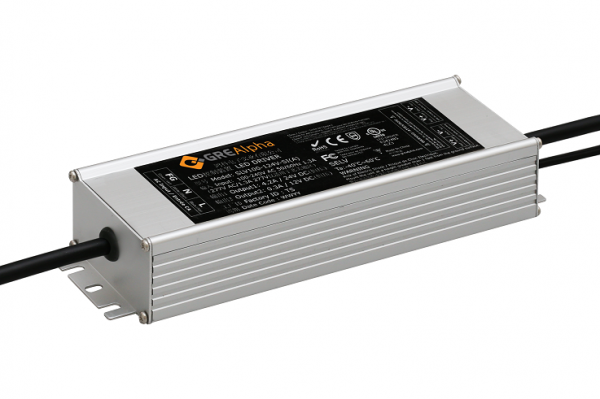

The SLV 100 -SI series is a UL Class 2 100 Watt LED driver series with constant voltage output. 12 V auxillary cable output options are available for connection with IoT sensors or active cooling devices. This series can be easily upgraded with dimming options by combining with any of GRE Alpha's dimming module accessories .
| Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
|---|---|---|---|---|---|---|---|
| IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
| 100-277 | 1 | 0 | 8.33 | 100 | 100 | ||
| 100-277 | 1 | 0 | 4.20 | 100 | 100 | ||
| 100-277 | 1 | 0 | 2.10 | 100 | 100 | ||
| Part Number |
|---|
| SLV100-112V-SI |
| SLV100-124V-SI |
| SLV100-148V-SI |
The SLV 100 -SI series is a UL Class 2 100 Watt LED driver series with constant voltage output. 12 V auxillary cable output options are available for connection with IoT sensors or active cooling devices. This series can be easily upgraded with dimming options by combining with any of GRE Alpha's dimming module accessories .
| Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
|---|---|---|---|---|---|---|---|
| IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
| 100-277 | 1 | 0 | 8.33 | 100 | 100 | ||
| 100-277 | 1 | 0 | 4.20 | 100 | 100 | ||
| 100-277 | 1 | 0 | 2.10 | 100 | 100 | ||
| 100-277 | 1 | 0 | 8.33 | 100 | 100 | ||
| 100-277 | 1 | 0 | 4.20 | 100 | 100 | ||
| 100-277 | 1 | 0 | 2.10 | 100 | 100 | ||
| Part Number |
|---|
| SLV100-112V-SI(A) |
| SLV100-124V-SI(A) |
| SLV100-148V-SI(A) |
| SLV100-112V-FC(A) |
| SLV100-124V-FC(A) |
| SLV100-148V-FC(A) |
The SLV 150-FC series is a UL Listed 100 Watt LED driver series with constant voltage output. Coming in a patented enclosure with easy-install integral wiring compartments, the SLV150-FC is UL listed eliminating needs of external junction boxes saving installation time and costs by half. 12V auxillary cable output options are available for connection with IoT sensors or active cooling devices. This series can be easily upgraded with dimming options by combining with any of GRE Alpha's dimming module accessories .
| Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
|---|---|---|---|---|---|---|---|
| IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
| 100-277 | 1 | 0-12.50 | 150 | 150 | |||
| 100-277 | 1 | 0-6.25 | 150 | 150 | |||
| 100-277 | 1 | 0-3.13 | 150 | 150 | |||
| Part Number |
|---|
| SLV150-112V-FC |
| SLV150-124V-FC |
| SLV150-148V-FC |

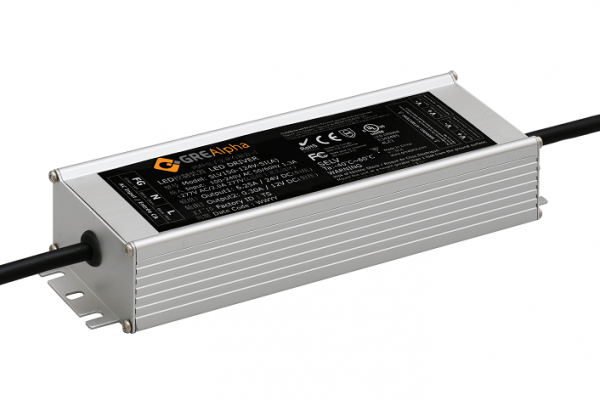

The SLV 150-SI series is a universal input 150 Watt LED driver series with constant voltage output. 12V auxillary cable output options are available for connection with IoT sensors or active cooling devices. This series can be easily upgraded with dimming options by combining with any of GRE Alpha's dimming module accessories.
| Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
|---|---|---|---|---|---|---|---|
| IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
| 100-277 | 1 | 0 | 12.5 | 150 | 150 | ||
| 100-277 | 1 | 0 | 6.25 | 150 | 150 | ||
| 100-277 | 1 | 0 | 3.13 | 150 | 150 | ||
| Part Number |
|---|
| SLV150-112V-SI |
| SLV150-124V-SI |
| SLV150-148V-SI |
The SLV 150-SI series is a universal input 150 Watt LED driver series with constant voltage output. 12V auxillary cable output options are available for connection with IoT sensors or active cooling devices. This series can be easily upgraded with dimming options by combining with any of GRE Alpha's dimming module accessories.
| Input Voltage Range (V) |
Channels Output |
Constant Current | Constant Voltage | Max. Output Power (W) |
Total Output Power (W) |
||
|---|---|---|---|---|---|---|---|
| IOut Rated (adjustable range) (A) |
VOut Nominal (compliance range) (V) |
VOut Rated (adjustable range) (V) |
IOut Nominal (compliance range) (A) |
||||
| 100-277 | 1 | 0 | 12.5 | 150 | 150 | ||
| 100-277 | 1 | 0 | 6.25 | 150 | 150 | ||
| 100-277 | 1 | 0 | 3.13 | 150 | 150 | ||
| 100-277 | 1 | 0 | 12.50 | 150 | 150 | ||
| 100-277 | 1 | 0 | 6.25 | 150 | 150 | ||
| 100-277 | 1 | 3.13 | 150 | 150 | |||
| Part Number |
|---|
| SLV150-112V-SI(A) |
| SLV150-124V-SI(A) |
| SLV150-148V-SI(A) |
| SLV150-112V-FC(A) |
| SLV150-124V-FC(A) |
| SLV150-148V-FC(A) |
