Models

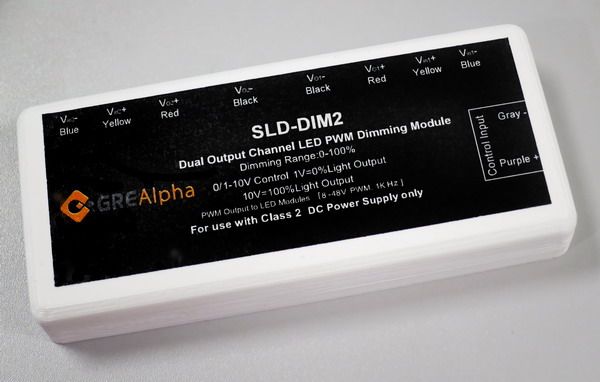

SLD-DIM2

 The SLD Smart Dim dual channel LED dimming module is designed to provide flicker-free (PWM) pulse width modulated dimming. With over 95% efficiency, this smart, power saving module offers extreme flexibility, ease of use and is compatible with commercial 0-10V dimmer controls (0V = 0%brightness, 10V = 100% brightness.)This accessory is ideal when combined with an AC-DC driver to enable dimming of LED fixtures. The SLD  Smart-Dim can be incorporated into an SLD/ XLD series enclosure,  eliminating the need for external junction boxes, for quick and easy installation.

Input
Voltage
Range (VDC)
Channels
Output
Current Output Rating Voltage Output Rating Max. Output
Power
(W)
Total Output
Power
(W)
Min.
Current
(A)
Max.
Current
(A)
Min.
Voltage
(V)
Max.
Voltage
(V)
8-48 2 0.15 5 Vin 0.2-0.5 240 240
Part Number
SLD-DIM2
SLD-DIM LED Dimming Module for Flicker-Free Dimming

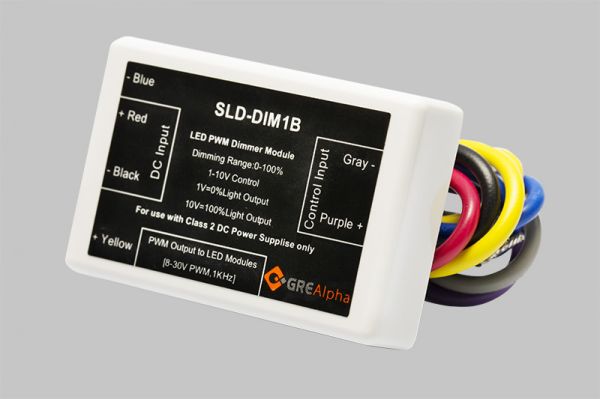

The SLD Smart-DIM DC dimming module is designed to provide flicker-free (PWM) pulse width modulated dimming in 1-10V dimming applications. With over 95% efficiency, this smart, power saving module offers extreme flexibility, ease of use and is compatible with commercial 1-10V dimmer controls. (1V=0% brightness, 10V=100% brightness). this accessory is ideal when combined with an AC-DC driver to enable dimming of LED fixtures. The SLD Smart-DIM's can be incorporated into an SLD/XLD series enclousre, eliminating the need for external junction boxes, for quick and easy installation.

Input
Voltage
Range (VDC)
Channels
Output
Current Output Rating Voltage Output Rating Max. Output
Power
(W)
Total Output
Power
(W)
Min.
Current
(A)
Max.
Current
(A)
Min.
Voltage
(V)
Max.
Voltage
(V)
8-30 1 0.15 5 Vin 0.2-0.5 120 120
15-48 1 0.15 3 Vin 0.2-0.5 150 150
Part Number
SLD-DIM1B
SLD-DIM1H

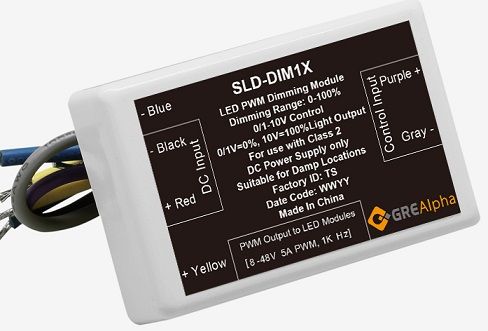

GRE Alpha's SLD Smart-DIMX dimming module features ultra high resolution dimming. With 10,000 dimming steps and GRE Alpha's advanced digitial filtering technology, the SLD-DIM1X dimming module provides best in class, flicker-free (PWM) pulse width modulated dimming for 0-10V dimming applications. This easy-to-install dimming module works with commercial 0-10V dimmer controls (1V=0% brightness, 10V=100% brightness), and connects between any Class 2, AC-DC LED driver and LED Fixture/Luminaire to enable exceptional, flicker free dimming. The SLD Smart-DIMX can be incorporated into any of our SLD/XLD series LED driver’s DC wiring cavity, eliminating the need for external junction boxes, resulting in a quick, low cost installation.

Input
Voltage
Range (VDC)
Channels
Output
Current Output Rating Voltage Output Rating Max. Output
Power
(W)
Total Output
Power
(W)
Min.
Current
(A)
Max.
Current
(A)
Min.
Voltage
(V)
Max.
Voltage
(V)
8 - 48 1 0.1 5 Vin 0.2-0.5 150 150
Part Number
SLD-DIM1X
